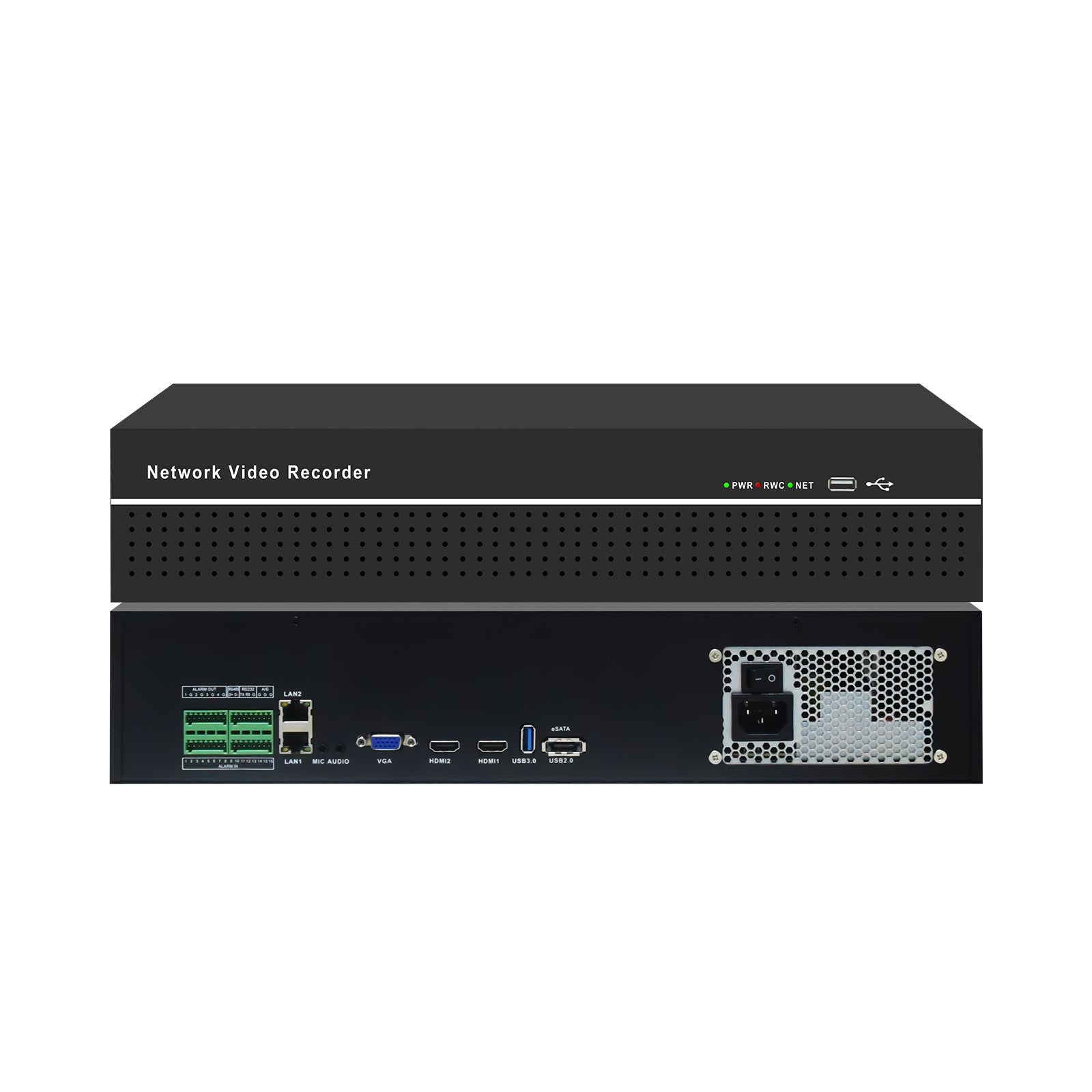

JideTech 64CH Professional Network Video Recorder (MN3264B)
JideTech 64CH Professional Network Video Recorder (MN3264B)
Key Features
1. Dual Gigabit network cards, supporting dual network IP settings and other applications
2. Can be connected to third-party cameras that comply with ONVIF and RTSP protocols
3. Support the standard national standard GB28181 protocol
4. Support mixed access of H.265 and H.264 devices
5. Support the preview, storage and playback of 12MP high-definition network videos
6. Supports 2 HDMIs, HDMI supports 4K, HDMI1 supports 1080P output, and supports heterogeneous output.
7. Supports intelligent search and playback functions, effectively improving the efficiency of video retrieval and playback.
8. Support up to 16 channels of local synchronous playback
9. Support mobile client access
10. Support network detection (network traffic monitoring, network resource statistics) function
Specification
|
Model Name |
MN3264B |
|
|
Audio and video input |
Video input |
64 channel |
|
Access bandwidth |
320MB |
|
|
Audio and video output |
HDMI output |
1 channel, resolution: 3840×2160, 2560×1440, 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768 |
|
HDMI 2 output |
1 channel, resolution: 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768 |
|
|
VGA output |
1 channel, resolution: 1920×1080, 1440×900, 1280×1024, 1280×720, 1024×768 |
|
|
Audio output |
1 channels, HDMI/AUX interface (3.5mm) |
|
|
Video and audio code parameters |
Video resolution |
36 channels 12MP, 64 channels 8MP/5MP/4MP/3MP/1080P/720P |
|
Synchronous playback |
Instant playback, regular playback, smart playback |
|
|
2 channels 12MP/4 channels 8MP/8 channels 4MP/16 channels 2MP |
||
|
Video management |
Backup Mode |
Regular Backup, Video Clip Backup |
|
Hard disk drive |
Type |
8*SATA port |
|
Maximum capacity |
Supports hard drives up to 14TB |
|
|
External interface |
Voice Output |
2×HDMI output、1×3.5mm AUX |
|
Network port |
2* RJ45 1000M/100M/10M Adaptive Ethernet |
|
|
USB interface |
2*USB2.0 |
|
|
Network management |
Network protocol |
Support TCP/IP,IPv4,DHCP,NTP,RTSP,ONVIF,P2P and other network protocols |
|
Other |
Power |
AC100~240V(50/60Hz) ATX power input |
|
Power consumption(Hard drive not included） |
≤8W (excluding hard disk) |
|
|
Working temperature |
-10℃～＋55℃ |
|
|
Working humidity |
10%～90%; |
|
