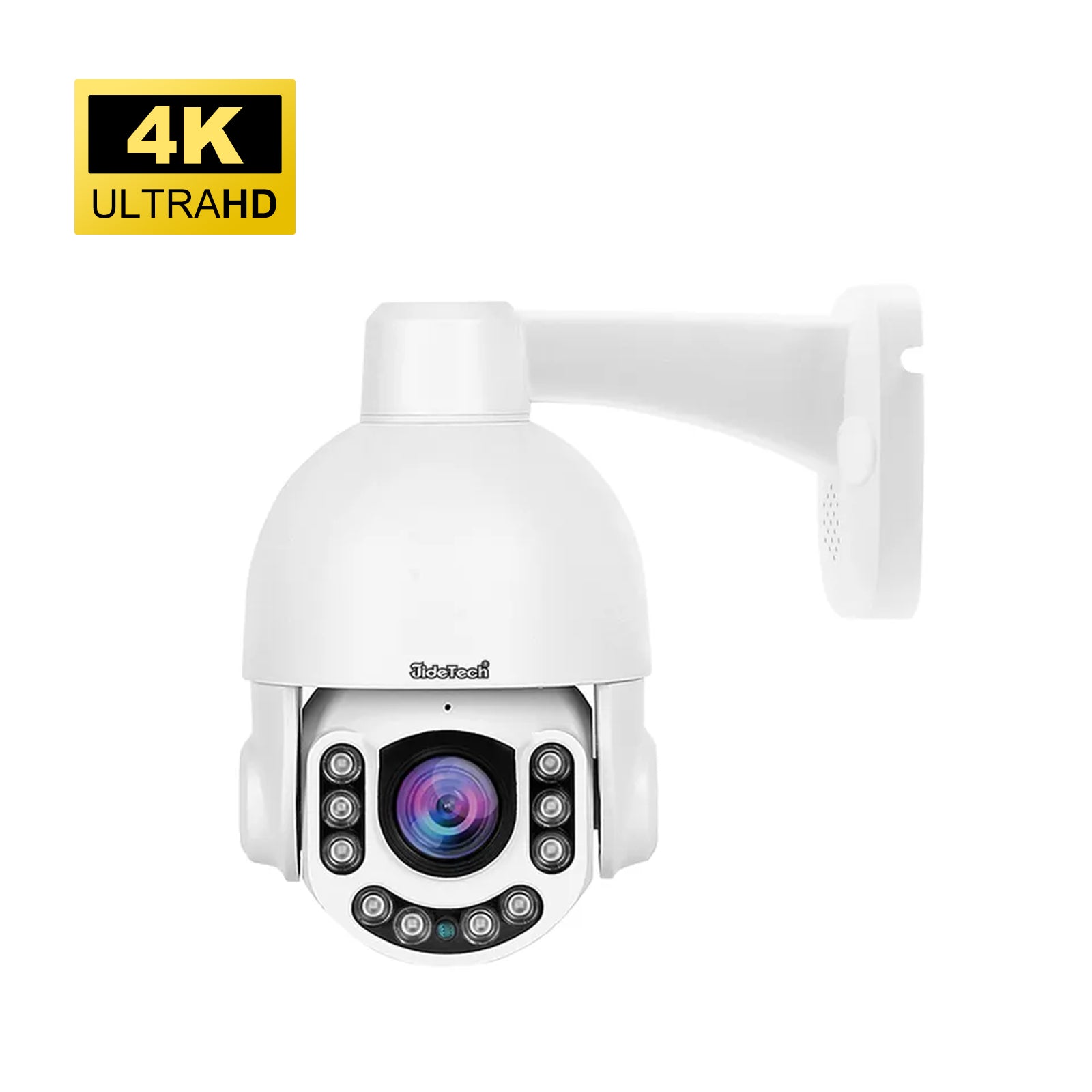

JideTech 4K HD 5X Zoom Automatic Tracking POE Camera (P14-5X-8MP)
JideTech 4K HD 5X Zoom Automatic Tracking POE Camera (P14-5X-8MP)
Features:
Pan: 355˚(endless) and rotate speed 0°/s～40°/s, Tilt: 0˚-90˚(Auto flip) and rotate speed 0°/s～40°/s
4K 3840*2160 Resolution. 2.7-13.5mm 5X Zoom Lens, 10 pieces IR LED, IR night Vison UP to 50M
Built-in: Power Over Ethernet POE: 48V-52V (IEEE 802.3af standard ) Or Power Adaptor with 220V
Support Human Detection & Automatic Tracking
Specifications:
|
Pan-Tilt |
|
|
Rotation speed |
Pan 0.1°~40°/S |
|
Tilt 0.1°-40°/S |
|
|
Pan |
355° |
|
Tilt |
90° |
|
Preset |
128*preset positions, can be edited |
|
Power-off position memory |
Support |
|
Guard |
Support |
|
Left-to-right scan |
Support |
|
Cruise |
Support |
|
Humanoid tracking |
Support |
|
Vehicle identification |
Support |
|
IP Camera |
|
|
Sensor |
1/2.8” IMX 415 CMOS Sensor+SSC338 |
|
Vedio coding |
H.264/H.265 |
|
Audio coding |
G.711 coding standard |
|
Maximum resolution |
Main stream: 3840×2160,3072×2048,2592×1944,2560×1440,2304×1296@20fps，1920×1080 1280×720@60fps； Sub stream：720×480,D1,VGA,640×360@30fps； |
|
Len |
5X optical zoom lens(F=2.7-13.5mm) |
|
White balance |
Auto |
|
Noise reduction |
2D/3D digital noise reduction |
|
Strong light suppression |
Support |
|
Wide dynamics |
Support |
|
Back light compensation |
Support |
|
Defog |
Support |
|
OSD character overlay |
Support |
|
Privacy mask |
Support |
|
Intelligent Detection |
Motion detection;humanoid detection;vehicle identification;area intrusion;alarm push(mobile phone APP, SMTP, FTP) |
|
Night vision fill light |
Infrared light (50M) |
|
Audio |
Support voice intercom/built-in microphone and speaker |
|
SD Card |
Support（256G Max） |
|
Internet |
|
|
Interface |
10/100M RJ45 Network interface |
|
POE |
POE 48V-52V IEEE 802.3af standard |
|
Network protocol |
TCP/IP，HTTP，NTP，DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P |
|
ONVIF protocol |
Standard ONVIF2.4 |
|
Network security |
IP address filtering; Access policy; RTSP certification; Account verification |
|
Web |
Support, plug-in requirement: IE9+ |
|
APP |
AC18pro（Android, IOS） |
|
Other |
|
|
Power |
12V/2A |
|
Reset Key |
Support |
|
Dimension of box |
11*11*10CM |
|
Weight of box |
0.68KG/Pcs |
|
Qty/CTN |
24 |
|
Dimension of Carton |
61*46*29CM |
|
G.W CTN |
11.5KG |
|
Installation |
Wall mounted |
|
Working temperature |
-30℃ -＋60℃ |
|
Working humidity |
0%－90% |
|
Working environment |
Outdoor |
|
Protection grade |
IP66 (Outdoor) |
